Open3DのPythonチュートリアルをC++に移植(その3) multiway_registration.py

Open3Dは、2018年3月現在v0.1です。頻繁にアップデートがあると思われますので、この記事はすぐ風化する予定です。

multiway_registrationは、複数の3次元点群のシーケンスから、総当たりでPoseGraphを作って全体最適化を行って、3次元形状復元をします。

pythonチュートリアルはこちら。
Open3D/multiway_registration.py at master · IntelVCL/Open3D · GitHub

その際、連番になっているところはodometryが得られるものとしてICPで相対関係を得て、連番じゃないところはLoopClosureの可能性があるとフラグを立ててPoseGraphに格納します。その後、全体最適化を行います。こんなのが、わずか数行で書けちゃうのはすごいですね。

TestMultiwayRegistration.cpp

// ----------------------------------------------------------------------------
// -                        Open3D: www.open3d.org                            -
// ----------------------------------------------------------------------------
// The MIT License (MIT)
//
// Copyright (c) 2018 www.open3d.org
//
// Permission is hereby granted, free of charge, to any person obtaining a copy
// of this software and associated documentation files (the "Software"), to deal
// in the Software without restriction, including without limitation the rights
// to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
// copies of the Software, and to permit persons to whom the Software is
// furnished to do so, subject to the following conditions:
//
// The above copyright notice and this permission notice shall be included in
// all copies or substantial portions of the Software.
//
// THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
// IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
// FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
// AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
// LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING
// FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS
// IN THE SOFTWARE.
// ----------------------------------------------------------------------------

#include <iostream>
#include <memory>
#include <Eigen/Dense>

#include <Core/Core.h>
#include <IO/IO.h>
#include <Visualization/Visualization.h>

#include <Core/Utility/Timer.h>

#include <Core/Registration/PoseGraph.h>
#include <Core/Registration/GlobalOptimization.h>

using namespace three;

int main(int argc, char *argv[])
{
	SetVerbosityLevel(VerbosityLevel::VerboseAlways);

	bool visualization = true; // false;

#ifdef _OPENMP
	PrintDebug("OpenMP is supported. Using %d threads.", omp_get_num_threads());
#endif

	std::vector<std::shared_ptr<PointCloud> > pcds;
	for(int i=0; i<3; i++){
		std::string filename = std::string("../../lib/TestData/ICP/cloud_bin_")
                        + std::to_string(i) + std::string(".pcd");
		std::shared_ptr<PointCloud> pcd = CreatePointCloudFromFile(filename);
		double voxel_size = 0.02;
		std::shared_ptr<PointCloud> downpcd = VoxelDownSample(*pcd, voxel_size);
		pcds.push_back(downpcd);
	}

	if(visualization){
	        std::vector<std::shared_ptr<const Geometry> > geoms; // cast?
		geoms.assign(pcds.begin(), pcds.end());
		DrawGeometries({geoms});
		geoms.clear();
	}

	PoseGraph pose_graph;
	Eigen::Matrix4d odometry = Eigen::Matrix4d::Identity();
	pose_graph.nodes_.push_back(PoseGraphNode(odometry));

	int n_pcds = pcds.size();
	Eigen::Matrix4d transformation_icp = Eigen::Matrix4d::Identity();
	Eigen::Matrix6d information_icp = Eigen::Matrix6d::Identity();
	for(int source_id = 0; source_id < n_pcds; source_id++){
		for(int target_id = source_id + 1; target_id < n_pcds; target_id++){
			std::shared_ptr<PointCloud> source = pcds[source_id];
			std::shared_ptr<PointCloud> target = pcds[target_id];

			std::cout << "Apply point-to-plane ICP" << std::endl;
                        // RegistrationResult
			auto icp_coarse = RegistrationICP(*source, *target, 0.3,
						Eigen::Matrix4d::Identity(),
						TransformationEstimationPointToPlane());
                        // RegistrationResult
			auto icp_fine = RegistrationICP(*source, *target, 0.03,
						icp_coarse.transformation_,
						TransformationEstimationPointToPlane());
			transformation_icp = icp_fine.transformation_;
			information_icp = GetInformationMatrixFromPointClouds(
						*source, *target, 0.03f, icp_fine.transformation_);
			std::cout << information_icp << std::endl;

			// draw_registration_result(source, target, np.identity(4))
			// VisualizeRegistration(*source, *target, Eigen::Matrix4d::Identity());
			std::cout << "Build PoseGraph" << std::endl;
                        bool uncertain;
			if(target_id == source_id + 1){ // odometry case
				odometry *= transformation_icp;
				pose_graph.nodes_.push_back(
						PoseGraphNode(odometry.inverse()));
				uncertain = false;
				pose_graph.edges_.push_back(
						PoseGraphEdge(source_id, target_id,
						transformation_icp, information_icp, uncertain));
			}
			else { // loop closure case
				uncertain = true;
				pose_graph.edges_.push_back(
						PoseGraphEdge(source_id, target_id,
						transformation_icp, information_icp, uncertain));
			}
		}
	}

	std::cout << "Optimizing PoseGraph ..." << std::endl;
	GlobalOptimizationConvergenceCriteria criteria;
	double max_correspondence_distance = 0.03;
	double edge_prune_threshold = 0.25;
	int reference_node = 0;
	GlobalOptimizationOption option(max_correspondence_distance,
					edge_prune_threshold,
					reference_node);
	GlobalOptimizationLevenbergMarquardt optimization_method;
	GlobalOptimization(pose_graph, optimization_method,
			criteria, option);

	std::cout << "Transform points and display" << std::endl;
	for(int point_id=0; point_id<n_pcds; point_id++){
		std::cout << pose_graph.nodes_[point_id].pose_ << std::endl;
                pcds[point_id]->Transform(pose_graph.nodes_[point_id].pose_);
	}

	if(visualization){
                std::vector<std::shared_ptr<const Geometry> > geoms; // cast?
	        geoms.assign(pcds.begin(), pcds.end());
                DrawGeometries({geoms});
                geoms.clear();
	}

	return 0;
}

> ./TestMultiwayRegistration
(Transform points and display)
1 -3.77438e-18 -4.33681e-19 1.38778e-17
3.16113e-18 1 0 6.93889e-18
0 0 1 0
0 0 0 1
0.840534 -0.14724 0.521367 0.350979
0.00666122 0.965095 0.261816 -0.396388
-0.541718 -0.216592 0.812176 1.72979
0 0 0 1
0.963186 -0.0751313 0.258124 0.38868
0.00126401 0.96141 0.275118 -0.4987
-0.268833 -0.264663 0.926111 1.29867
0 0 0 1

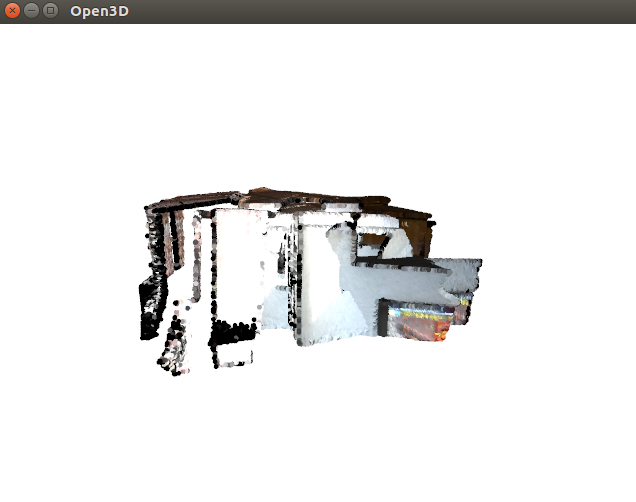

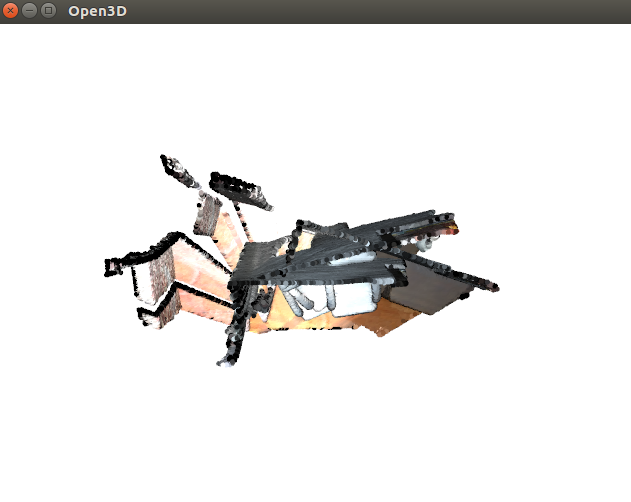

Initial

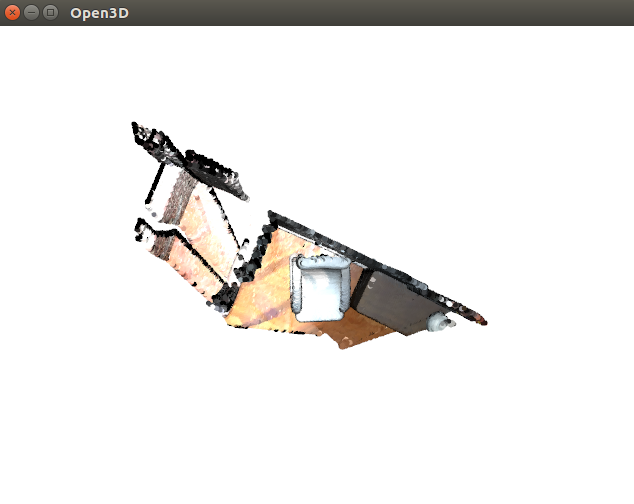

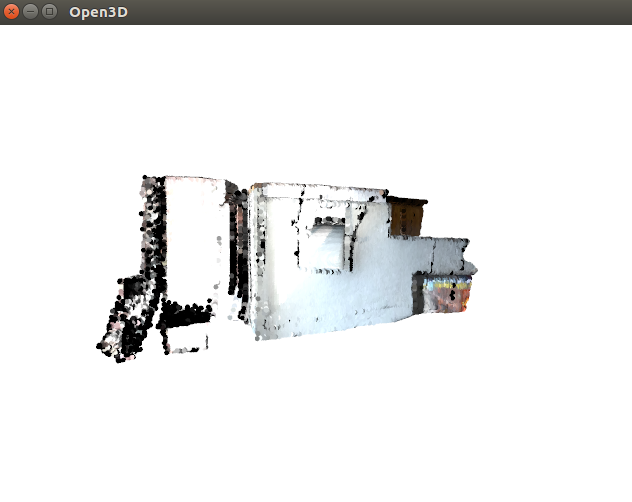

Optimized

ここの書き方は怪しいので注意

DrawGeometryの引数のところ、std::vector< std::shared_ptr < const Geometry > >型を渡すことになっていて、普通にPointCloud型を渡しても良さそうなのに、上手く渡す方法が分からなかったため苦肉の策でこう書いているだけです。無駄が多いので注意。

	if(visualization){
	        std::vector<std::shared_ptr<const Geometry> > geoms; // cast?
		geoms.assign(pcds.begin(), pcds.end());
		DrawGeometries({geoms});
		geoms.clear();
	}
